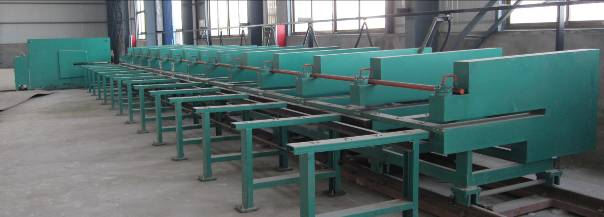

2. BS-ZQ11-8*2400*13000 steel plates diagonally shearing production line

Technique parameters of the machine

No. Model Value Unit
1 Diameter of grinding steel tube Ø350 Mm
2 Length of grinding steel tube 13000 Mm
3 Steel tube run around speed 5-10 Turn/m
4 Grinding steel tube run speed 1100 Mm/m

Measure L 17000 Mm
W 2000 Mm
H 800 Mm
6 Weight 1500 Kg


    This machine is suitable for the plate cutting processing specially the long plate. Easy of operating and processing of optional length of the plate make the machine productive. Pressing the plate which needs to cut to walking-equipment through the hydraulic cylinder and shear it by revolving cutter accompanied the movement of the walking-equipment. It can also cuts taper plate according to the request inclination. Therefore, this machine is widely used in the processing of light pole, vessel, metal structure, ships, building, hardware and so on.
