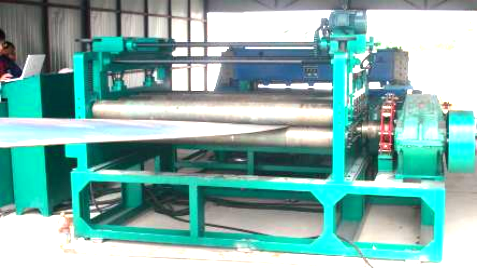

· machine overview
This machine used to spread the steel coil, leveling and cut to the request size.after manual feed into the leveling machine, as the cutting size, the unit will finish the leveling and cutting action.

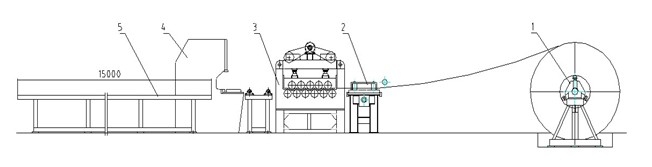

· cut to length line working process:
1).decoiler
2.)side guiding unit
3).leveling machine
4).cutting machine
5).stack table
6).electric system
| No. | Model | Value | Unit | |
|---|---|---|---|---|
| 1 | Diameter of grinding steel tube | Ø350 | Mm | |
| 2 | Length of grinding steel tube | 13000 | Mm | |
| 3 | Steel tube run around speed | 5-10 | Turn/m | |
| 4 | Grinding steel tube run speed | 1100 | Mm/m | |
| 5 | Measure | L | 17000 | Mm |
| W | 2000 | Mm | ||
| H | 800 | Mm | ||
| 6 | Weight | 1500 | Kg | |
| No. | Model | Value | Unit | |
|---|---|---|---|---|
| 1 | Diameter of grinding steel tube | Ø350 | Mm | |
| 2 | Length of grinding steel tube | 13000 | Mm | |
| 3 | Steel tube run around speed | 5-10 | Turn/m | |
| 4 | Grinding steel tube run speed | 1100 | Mm/m | |
| 5 | Measure | L | 17000 | Mm |
| W | 2000 | Mm | ||
| H | 800 | Mm | ||
| 6 | Weight | 1500 | Kg | |
