cut to length line

main feature

0.2-25 mm
Material Thickness
Range
2,500 mm
Strip width
up to
40 Ton
Coil Weight
up to
900Mpa
Yield strength
up to
80 m/min
Speed
up to

Blue sky CTL line

BLUE SKY Cut-to-length lines (CTL) are designed with the latest standards of technology and completely made in our factory.  Our Cut-to-length lines (CTL) can be used for processing hot and cold-rolled galvanized, pre-painted and stainless-steel coils, as well as nonferrous materials – aluminium, copper and brass coils.
Our designers develop all the new projects according to the customer needs and requirements, so all our Cut-to-length lines (CTL) are customized according to individual requirements.
The advanced technology of our cut-to-length lines (CTL) ensures a simple and reliable operation to provide an excellent quality of finished products.

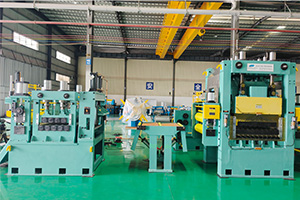

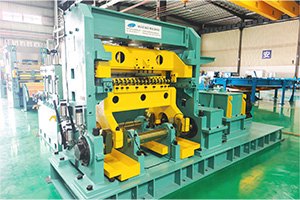

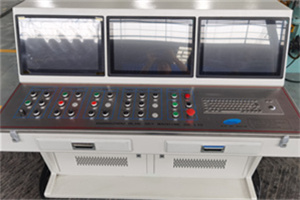

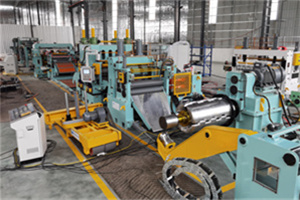

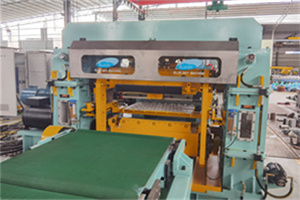

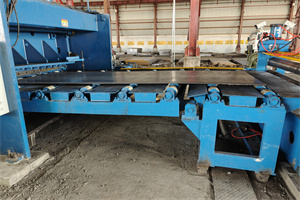

Cut-to-length line – LIGHT

LIGHT up to 30Ton, 2000mm, thickness 0.2 to 3mm, line speed up to 80m/min

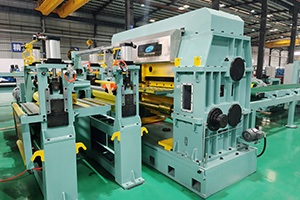

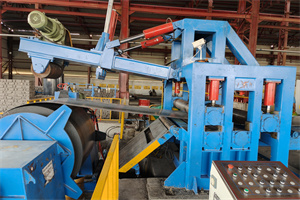

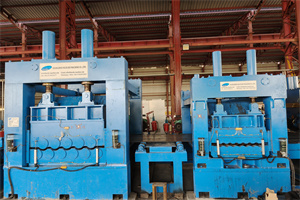

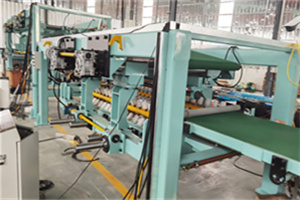

Cut-to-length line – MEDIUM

MEDIUM up to 30Ton, 2000mm, thickness up to 8mm, line speed up to 60m/min

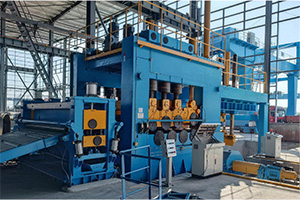

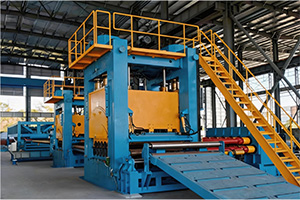

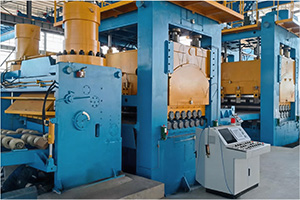

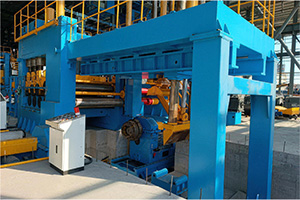

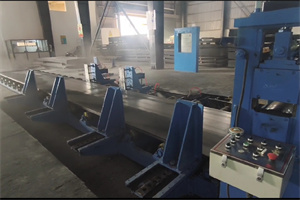

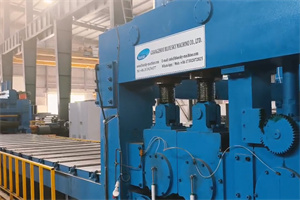

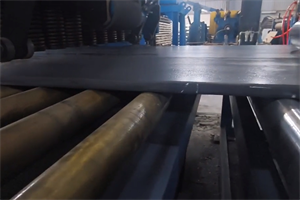

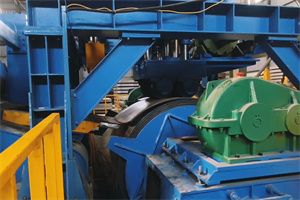

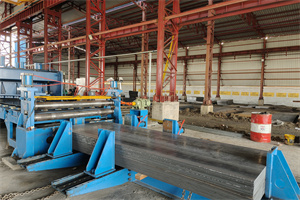

Cut-to-lenght line – HEAVY

HEAVY up to 40Ton, 2500mm, thickness up to 25mm, line speed up to 30m/min
get free quote

Machine videos

See how our machine works

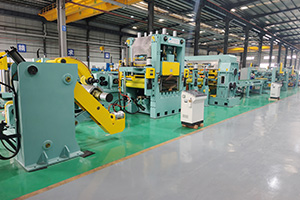

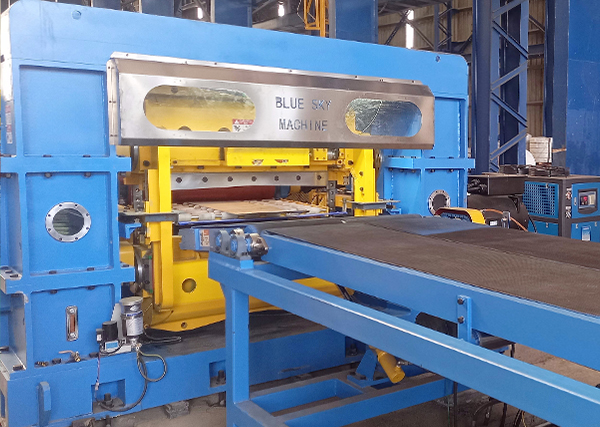

Rotary shear cut to length line BSRCL-(0.3-1.5)X1000mm
Hot rolled cut to length line whith edge Trimming BSCTL-(3-12)X2000mm
Rotary shear Aluminum coil cut to length line BSRCL-(0.2-2.0)x1300mm
Hot-roll coil cut to length line BSHCL-(1.5-8)X600mm
1 2 3 4

Download our Cut to length line PDF

download

What Is A Cut To Length Line?

A cut-to-length (CTL) uncoil and level a coil of material, cuts it into sheets of precise lengths and stacks those sheets into a bundle. Functions can include, but not be limited to, coil stocking and coil loading, uncoiling and coil opening, straightening of the leading edge of the coil, edge trimming, scrap cutting, and sheet stacking. In-line equipment used in a system can vary according to the width, thickness and incoming coil weight and may include coil storage, uncoiler and coil loading, leveler, flattener, roll feeds, shears, sheet stacker and related tooling and accessories.

Why We Need A Cut To Length Line?

A cut-to-length line processes metal coil rolls by uncoiling, straightening, shearing to length and stacking of sheet metal blanks. These lines provide automation that ensures accurate feeding, flattening & shearing for a variety of industries.

Cut To Length Line (CTL) Solutions

A CTL or a Blanking Line will take a master coil of flat-rolled steel from the integrated or mini-mill and unroll, flatten and cut to length sections to a precise length and stack the sheets into a bundle. Equipment will vary according to the width, thickness and incoming coil weight. Depending on the final end product to be utilized from the cut sheet, flatness may be a critical point and use of a double leveler, skin pass or stretcher leveler may be employed in the process.

Stop-Go CTL (Tight line mode)

Stop-Go Lines are less expensive than continuous CTL’s. The strip is fed through the line quickly and then deaccelerated and comes to a complete stop. The stationary shear fires and a sheet or blank is produced to a predetermined length. Tight-line configurations can be a good choice if the footprint inside your plant is limited because they usually are shorter than free-loop designs. The foundation costs are lower because a looping pit isn’t required, and the thickness capacity of tight-line machines is virtually unlimited, making them ideal for heavy-gauge applications. Tight-line machines with stationary shears have the lowest cost of any cut-to-length line but have the lowest productivity as well. In addition, tight-line machines may damage thinner materials because visible roll marks can appear where material stops in the leveler. A flying shear can be installed to increase production especially in the case of heavy gauge. The flying shear must be synchronized perfectly with the speed and location of the moving strip. Synchronization can be achieved, but the cost is usually substantial

Continuous CTL (Free loop mode)

In this variant of a CTL, the strip is fed out of the master coil and through the flattener and or leveler. The strip is now fed at a constant rate into a looping pit of a desired depth according to the thickness and speed of cutting to length. At the other end of the loop, a separate servo feeder measures and feeds the material to the shear. The shear can be stationary or flying type. The continuous CTL is preferred when lighter gauges are cut to length generally less than 3mm.
