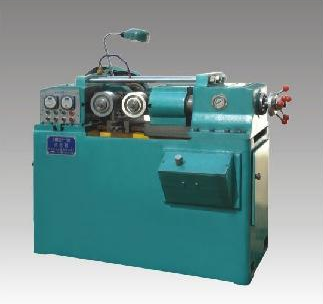

Thread rolling machine is actually a multi-function cold roll forming machine, the machine can roll within the scope of its pressure, the workpiece in the cold state of the thread, straight, straight teeth, knurling, and other forming rolling. Cold rolling process is an advanced non-cutting process, which can effectively improve the internal and surface quality of the workpiece, which is an ideal process with high efficiency, energy saving and low consumption.
2. Picture and technical indicators：
| No | Technical indicators | Technical parameters |
|---|---|---|
| 1 | Suitable for pipe diameter | 50~120mm |
| 2 | Suitable for pipe thickness | 2~10mm |
| 3 | Max. Hole diameter | 12mm |
| 4 | Drilling cutting feed stroke | 0~30mm |
| 5 | Feed driving force | 1200n |
| 6 | No loading rotation speed | 1000rpm |
| 7 | Drilling motor | 600w+600w |
| 8 | Air consumption for single head | 3~6 l/stroke |
| 9 | Total power consumed | 1.2kw |
| 10 | Power supply | 380v，50hz 3 phases, or according customer requirement |
| 11 | Overall dimension(l×w×h) | 1950mm×1450mm×960mm |
| 12 | Weight | 550kg |
| No | Technical indicators | Technical parameters | |
|---|---|---|---|
| 1 | Diameter range of hydraulic workpiece | 3-80mm | |
| 2 | Pitch range of rolling workpiece | Metric thread | 0.5-4mm |
| 3 | Trapezoidal thread | 2-4mm | |
| 4 | The maximum size of workpiece | M36 | |
| 5 | The maximum adjustment angle | ±10° | |
| 6 | The maximum taper of threaded workpiece screw | 3000mm（need to add protection device） | |
| 7 | The height of machine table to rolling mold center | 1:16 | |
| 8 | Diameter of the spindle installed thread module | 160mm±0.50 | |
| 9 | Width of spindle mounted thread mold key | Φ54mm | |
| 10 | Maximum diameter of rolling die | 12mm | |
| 11 | Range of rolling die | 180mm | |
| 12 | Maximum roll pressure | 30-120mm | |
| 13 | Spindle speed | 12.5kn | |
| 14 | Mechanical transmission motor power | 31rpm（frequency） | |
| 15 | Hydraulic drive motor power | 5.5kw | |
| 16 | Cooling motor | 2.2kw | |
| 17 | Size（l×w×h） | 1500×1400×1500 | |
| 18 | Weight | 1800kg |
