Parameter
| No. | Model | Value | Unit | |
|---|---|---|---|---|
| 1 | Straighten length | Unlimited | ||
| 2 | Maximal straighten diameter of tube | Φ600 | Mm | |
| 3 | Maximal thickness of steel tube | 10 | Mm | |
| 4 | Power of motor | Model | Y160m-6 | Mm |
| Power | 11 | Kw | ||
| Rotate speed | 960 | Rpm | ||
| 5 | Size | L | 4000 | Mm |
| W | 1280 | Mm | ||
| H | 2450 | Mm | ||
| 6 | Weight | 2700 | Kg |

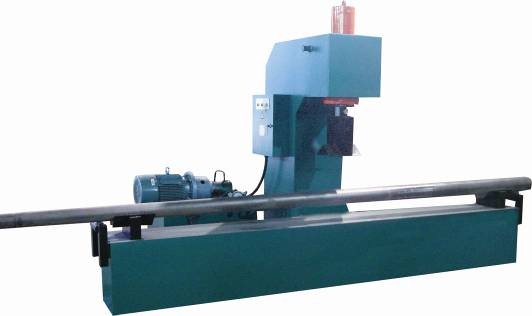

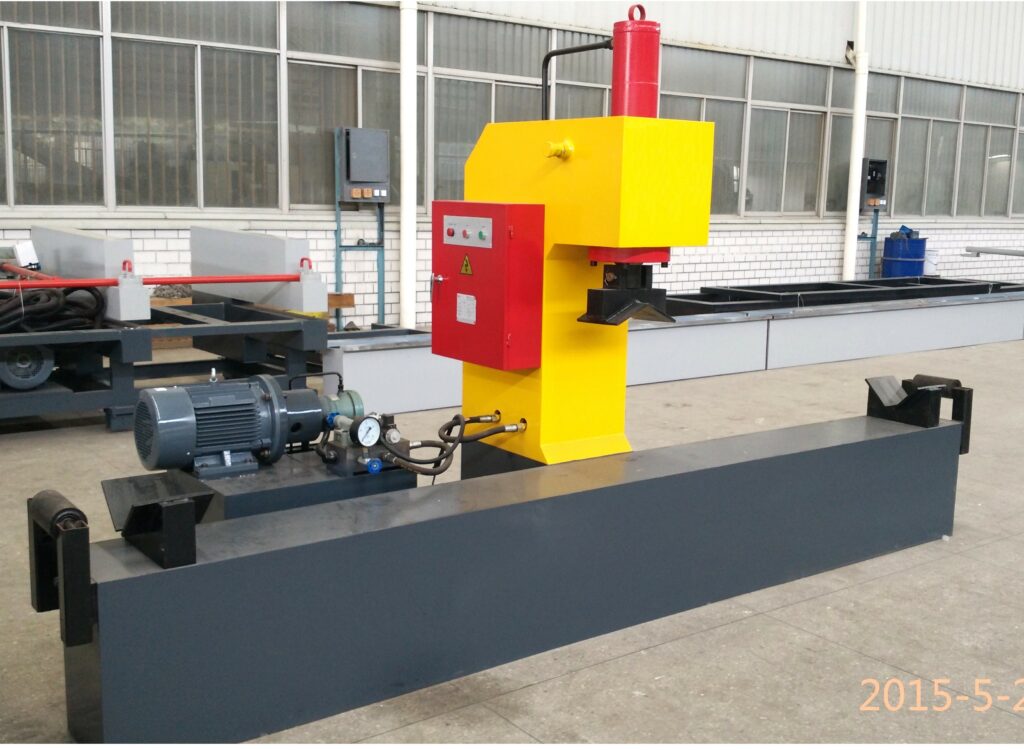

Figure
This machine with easy and compact structure, convenient and reliable.the time of putting steel pole to penetrator can be fit by workers.the workers hold the press-button press molding, the linearity was fit by eyes of the workers, it is with high efficiency.
Spare parts supplier
| Sn | Name | Spec. | Qty | Supplier |
|---|---|---|---|---|
| 1 | Oil pump | 25 above dispalcement | 1set | Shanghai |
| 2 | Motor | 11kw | 1set | South anhui or siemens motor |
| 3 | Sealings | Full set | 1set | Japan |
| 5 | Hydraulic oil | 46# anti-wear hydraulic oil | 1barrel | Shanghai(charged by user) |
| 6 | Hydraulic valve stack | Dedicated system | 1set | Home made |
| 7 | Cylinder | Dedicated cylinder | 1set | Home made |
