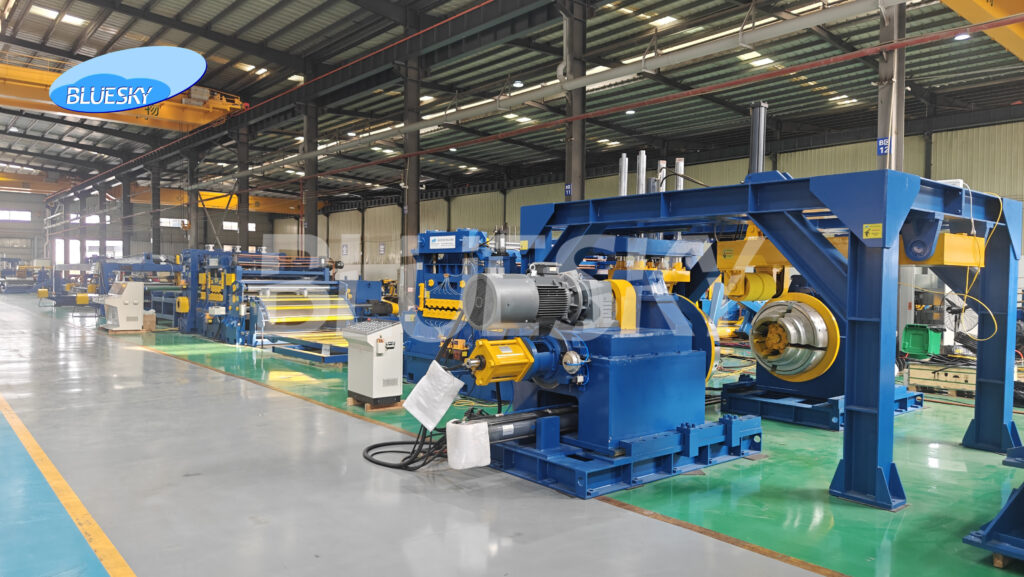

Standing on the assembly floor at Blue Sky Machine, our newly completed High-Speed Steel Coil Cut to Length Line, Model BSHCL-(1-6)×1850mm, is fully assembled and undergoing final factory inspections prior to export packaging.
Designed to handle medium-to-thick steel coils up to 1850mm in width, this high-performance line showcases robust mechanical engineering built for continuous, high-capacity coil uncoiling, precision leveling, and automatic shearing.
CTL Machine Technical Specifications Overview
Engineered for medium-gauge steel processing across wide coil formats, the High Speed CTL machine features the following system parameters:
- Machine Model: BSHCL-(1-6)×1850mm
- Processed Sheet Thickness: 1.0 mm – 6.0 mm
- Coil Width Range: 700 mm – 1850 mm
- Total Installed Power: 364 kw
- Power Standard: 3 Phase / 415V / 50 Hz
- Overall Dimensions: 30 m x 9 m x 3.5 m (L \W \ H)
What This Machinery Accomplishes in Steel Processing
The primary role of the BSHCL-(1-6)x1850mm Cut to Length Line is to convert heavy, raw steel coils into flat, stress-relieved, and precisely cut metal sheets at high production speeds. It performs three critical operations in a continuous automated sequence:
1. Eliminating Coil Set & Internal Stress

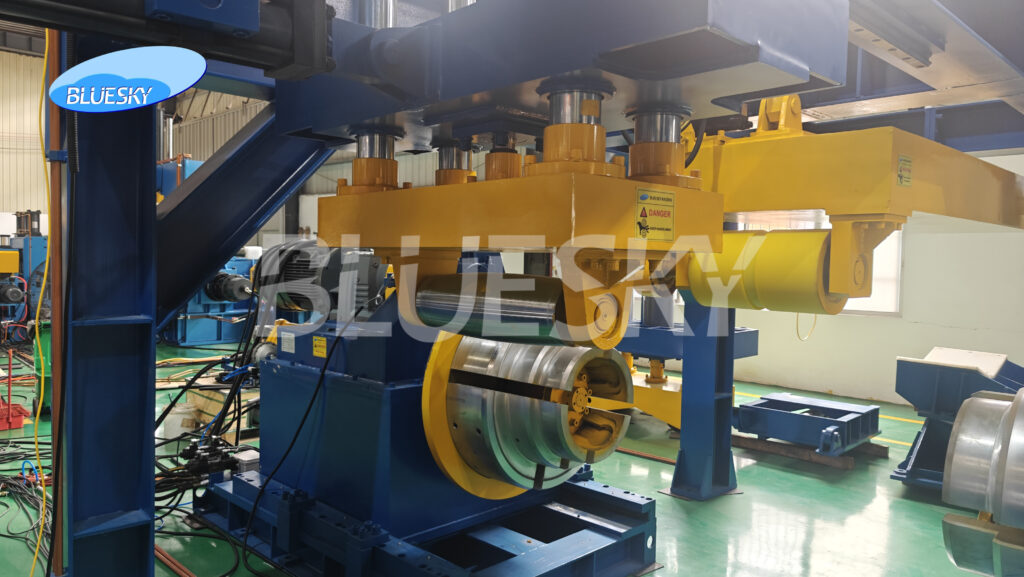

Raw steel coils inherently retain curvature (coil set) and internal tension from mill rolling. The leveling unit on the BSHCL line uses high-rigidity work rolls backed by a 364 KW power system to bend the steel strip beyond its yield point, producing dead-flat sheets that won't warp during subsequent cutting, bending, or stamping.

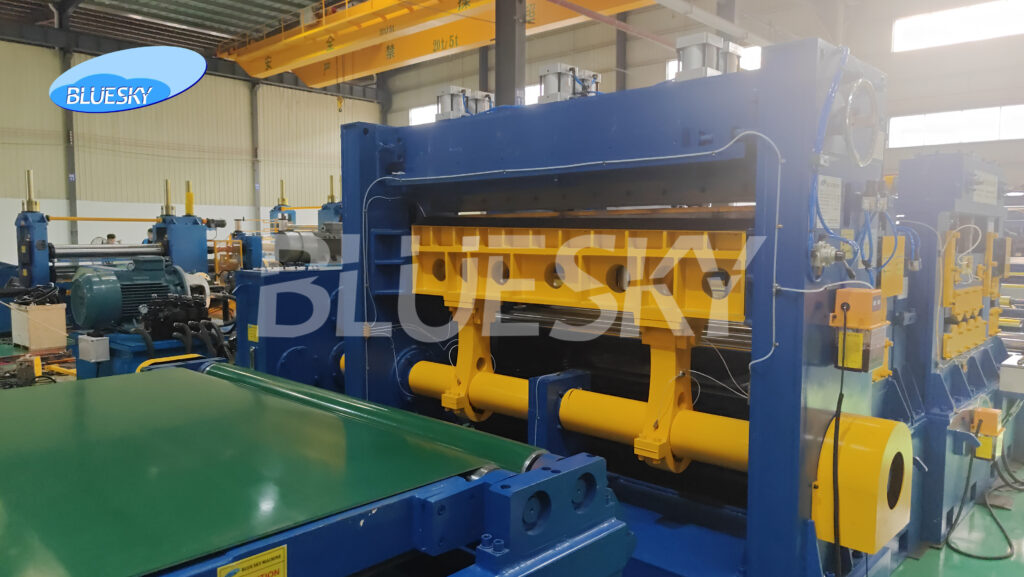

2. High-Speed Precision Shearing
With a synchronized shear mechanism, the machine makes accurate, square cross-cuts on moving or stopped material up to 6.0mm thick. This ensures consistent length tolerances required by downstream steel service centers and structural component fabricators.

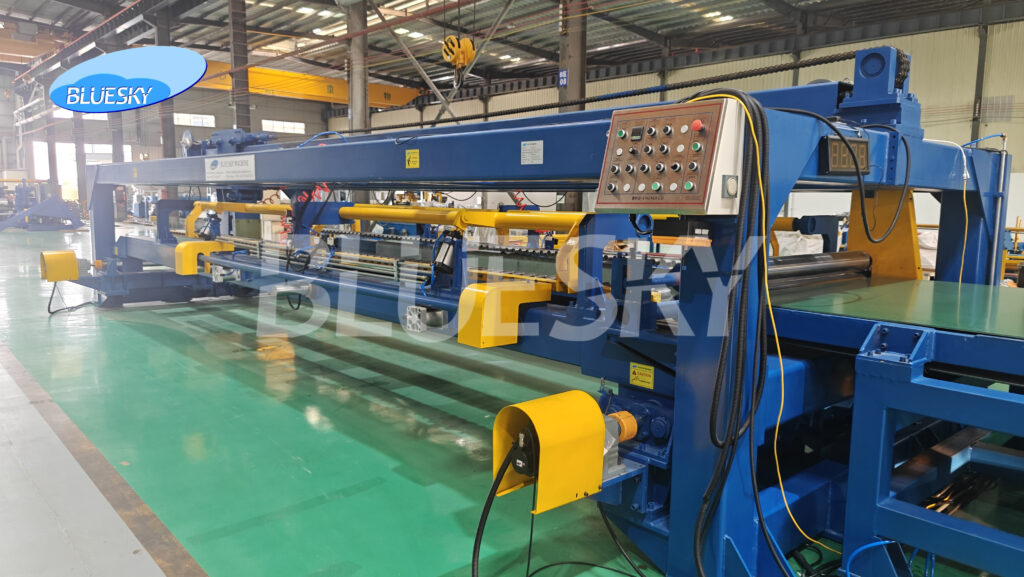

3. Automated Sheet Stacking & Output Management
To keep pace with high line speeds, finished steel plates are continuously conveyed onto an automatic stacking table, alignment-guided, and bundled into clean, square stacks ready for forklift transfer and packaging.
Rigorous Factory Acceptance & Quality Control
Before any machinery leaves the production floor at Blue Sky Machine, our engineering team conducts comprehensive dry-run tests, verifying hydraulic response, roller alignment, PLC synchronization, and electrical safety standards. This meticulous factory testing guarantees smooth installation and rapid commissioning when the machinery arrives at the customer's facility.
Elevate Your Plant's Coil Processing Capabilities
Looking to expand your factory's sheet shearing capacity? Blue Sky Machine engineers high-speed cut to length lines, custom coil slitting machinery, and high-frequency tube mills tailored to your material gauges and plant footprint. Contact the technical team at Blue Sky Machine today for a free technical layout design and factory-direct quote.
