If your steel factory needs to produce not just standard square metal sheets, but also triangular, trapezoidal, or diamond-shaped steel plates, a standard shearing machine won't cut it. You need a specialized system that can change cutting angles on the fly.

That is exactly where a pendulum shear cut to length line machine comes in. As a professional cut to length line manufacturer, Guangzhou Blue Sky Machine Co., Ltd engineers these advanced, high-speed steel coil processing lines for global metal service centers. In this simple guide, we will break down what this machinery does and why it is a game-changer for your factory.

1. How Does a Pendulum Shear Cut to Length Line Work?

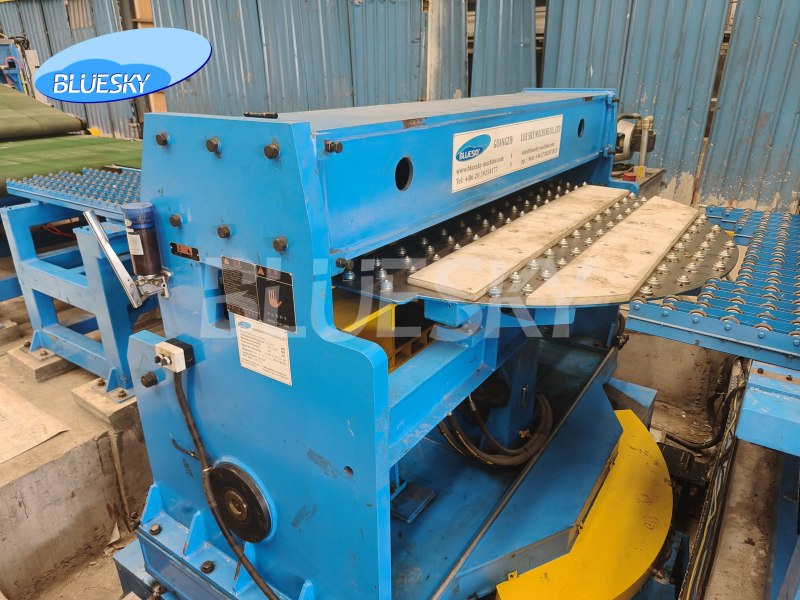

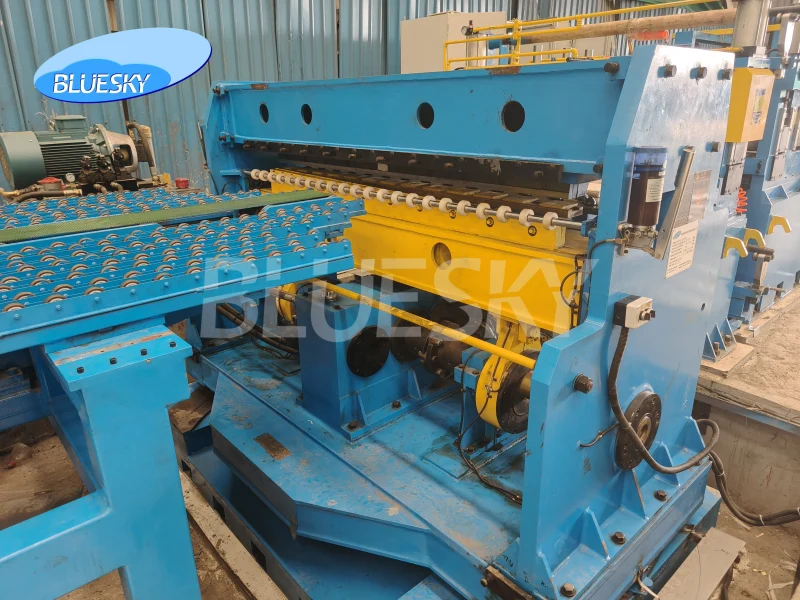

A standard metal cut to length line has a fixed blade that only cuts at a straight angle. But a pendulum shear cut to length line features a smart, heavy-duty rotating shearing head.

Driven by high-performance servo motors and a computerized PLC system, the shearing blade can automatically swing left and right like a pendulum. This allows the production line to achieve two major functions in one continuous run:

• Straight Cross-Cutting: Rapidly cuts wide metal master coils into perfect rectangular or square steel sheets.
• Multi-Angle Cutting (Angle Cut): Automatically swings to specific degrees to cut precise trapezoids, rhombohedra, or angled blanks without stopping the feeding process.

2. Top Benefits of Choosing a Pendulum Shear Machine

Upgrading to an automatic pendulum shear cut to length line brings massive advantages to your metalworking workshop:

• Zero Material Waste: In the past, making angle cuts meant shearing a square sheet first and then trimming the corners manually, which wasted tons of metal scrap. The pendulum action cuts the exact shape directly from the coil, saving your material and your money.
• High Production Speed: Because the knife adjusts its angle automatically in milliseconds based on your computer settings, you can process complex shapes at a very high speed.
• Micron-Level Precision: The combination of an advanced leveling machine (to remove coil waves) and servo-driven feeding ensures every angled piece comes out flat and perfectly sized for downstream welding or assembly.

3. Simple Care Tips for Your Pendulum Shear Line

Because this machine has a rotating cutting head, keeping it clean and lubricated is critical to avoid breakdown:

Keep the Swing Mechanism Clean

Wipe away metal scales, iron dust, and debris from the rotating base and pendulum guide rails after every shift. Trapped metal dust will scratch the high-precision moving parts.

Lubricate the Moving Joints Weekly

Apply premium grease to the servo drive gears, blade holders, and hydraulic pivot points once a week to ensure smooth, effortless swinging.

Check Blade Sharpness Regularly

Dull knives produce pronounced edge burrs, especially during angled cuts. Monitor blade wear closely and maintain the correct clearance gap between the upper and lower shearing blades.
