Meeting the Demand for Thin Sheet Metal Precision
In sheet metal fabrication sectors—such as home appliance casing, electrical enclosure manufacturing, and narrow strip steel service centers—processing ultra-thin metal coils from 0.3mm to 3.0mm requires machinery built for surface delicacy, tight length tolerances, and rapid shearing cycles.
To provide a dedicated solution for high-precision, narrow-width metal processing, Blue Sky Machine presents the BSHCL-(0.3-3.0)×850mmx12T Light Gauge High-Speed Cut to Length Line.
Designed with a compact footprint, this CTL line balances energy efficiency with dead-flat sheet leveling for light-gauge metals.
Technical Specifications Overview
- Machine Model: BSHCL-(0.3-3.0)×850mm x 12T
- Raw Material Thickness: 0.3 mm – 3.0 mm
- Raw Material Width: 100 mm – 850 mm
- Max. Coil Capacity: 12 Tons
- Total Installed Motor Power: 140 KW
- Electrical Standard: 3 Phase / 415V / 50 Hz
- Line Footprint: 21 m x 5 m x 3 m (L /W / H)
Engineering Advantages for Narrow & Thin Gauge Processing
Processing thinner gauge steel coils down to 0.3mm presents specific engineering requirements compared to standard heavy plate equipment:
1. Sensitive Surface Protection

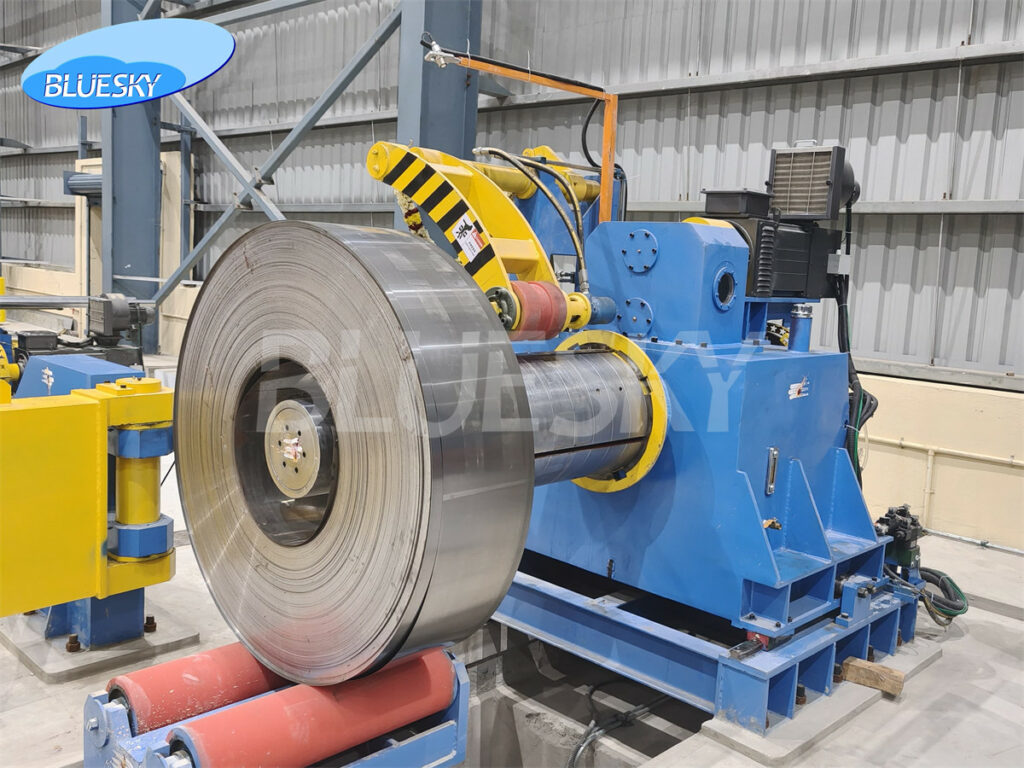

Thin galvanized steel, pre-painted metal, and cold-rolled strips are prone to pressure marks and surface scratches. The high-speed CTL Machine incorporates non-marking rubberized drive rollers and fine-tuned tension controls to ensure pristine surface quality throughout the uncoiling and feeding sequence.

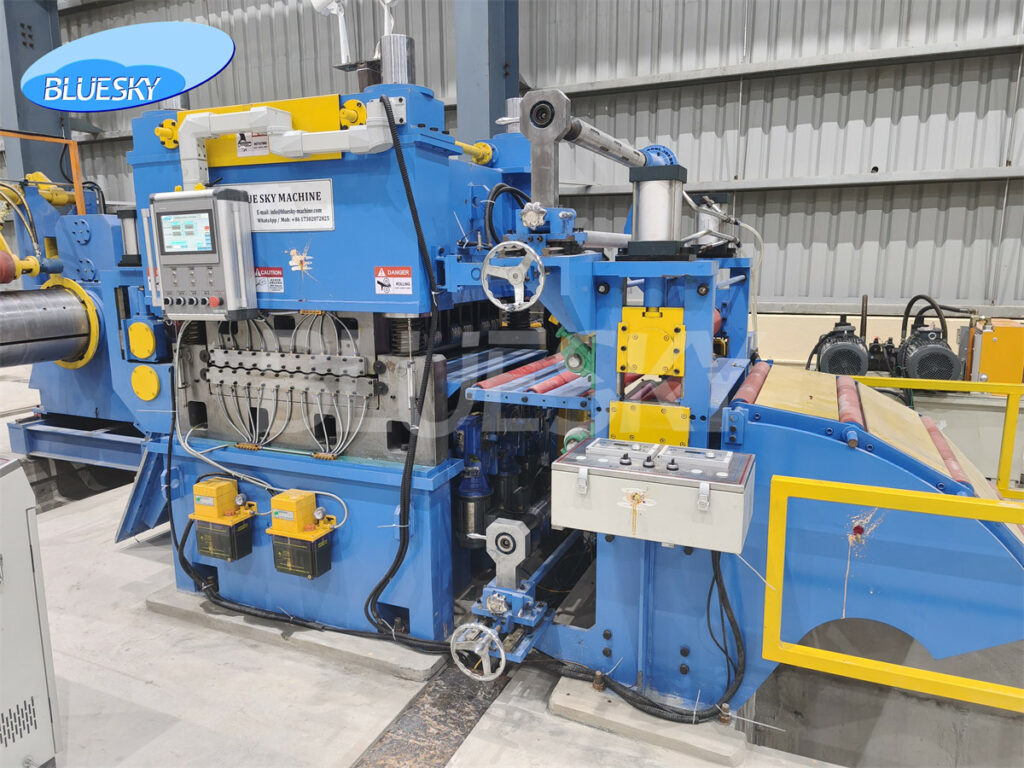

2. High-Density Multi-Roll Leveling
To eliminate coil set and cross-bow in thin strip stock, the precision multi-roll leveler utilizes small-diameter work rolls with precise backup roll adjustments. This delivers dead-flat sheets that won't warp during downstream laser cutting, stamping, or bending.
3. Micro-Space Footprint & Low Energy Demand
Measuring just 21 meters in length and 5 meters in width, this line requires minimal factory floor space while operating on an efficient 140KW total power system—making it an ideal upgrade for workshops looking to maximize production density and lower operational utility costs.
Tailored Engineering Solutions by Blue Sky Machine
At Blue Sky Machine, every coil processing line is tailored to match your specific sheet metal thickness, coil width, and factory layout requirements. Our end-to-end service includes custom machinery design, factory acceptance testing, and overseas technical installation.
Optimize Your Factory's Thin Sheet Processing Speed
Looking to increase daily output and sheet flatness for light gauge metal processing? Blue Sky Machine designs custom high-speed cut to length lines, coil slitting machines, and high-frequency tube mills engineered around your target output. Contact the technical team at Blue Sky Machine today for a customized line proposal and quote.
