‘K’ Span Buckle Profile Roll Forming Line

‘K’ Span Buckle Profile Roll Forming Line

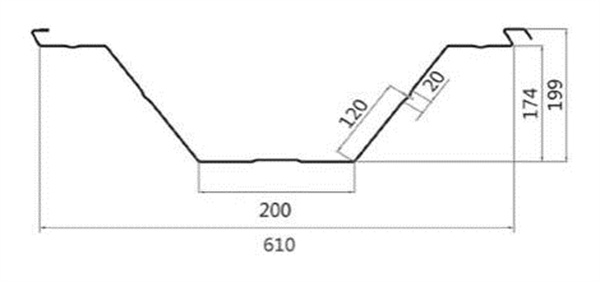

I.      Profile: (according to confirmation by both parties)

II. Process flow:

Decoiling ------> Guide feeding -------> Roll forming ------> Hydraulic cutting -----> Output discharge table

III. Main Component data:

1. Suitable materials   : Galvanized steel

2. Material thickness   : 0.8-1.2mm.

3. Material width          : 914mm.

4. Coil ID                      : 500mm

5. Coil OD                    : 900mm

6. Loading weight                   : 5000KG

7. Forming speed                   : 0-15 m / min

8. Feeding accuracy    : L≤3000mm ± 1.0 (related to material quality)

9. Straightness accuracy  : L≤1000mm ± 2.0 (related to material quality)

10. Power supply voltage       : 415 V, 50Hz, 3Phase

Drive motor                      : 7.5KW * 2,

Cut off hydraulic             : 4KW

Uncoiler                           : 3KW * 2

11. Feeding direction              : As per user

12. Transmission: cycloidal pin and chain transmission

13. Machine color                   : blue and orange red or as per buyer

14. Machine size (L * W * H)  : (4000 * 700 * 1600) mm

IV、Main components:

Name Model/name Qty. Instructions
1. Single head material rack ML-1000 1 set Passive uncoiling, hydraulic expanding
1.     Main engine forming system Feeding guide device 1 set Horizontal direction
Horizontal rack 18 Nos Lower shaft active move while upper shaft passive move, roll forming between 2 side plates
Cut-off system 1 set Auto cut to length, hydraulic shearing
2.     Unloading table 1 set Equip simple products blanking frame
3.     Electric control system 1 set PLC Control system

V. Parameters of each component:

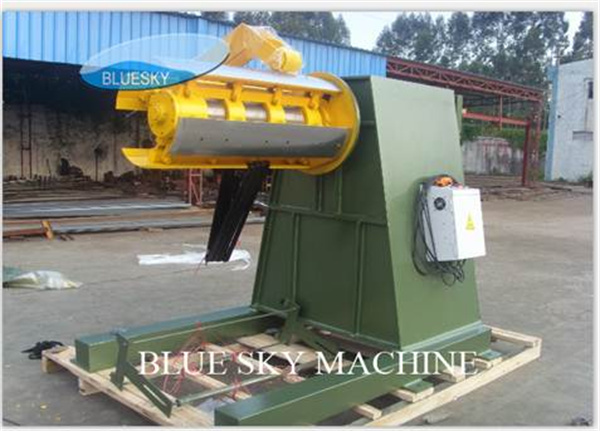

1. Uncoiling/leveling machine

(1) Function                          : single head,

(2) Roll support                    : cantilever

(3) Unwinding method         : passive

(4) Tightening method         : mechanical linkage

(5) Loading Capacity           : 5000KG

(6) Coil I.D                            : 500MM

(7) Coil O.D                           : 900MM

(8) Uncoiler power               : electric

2.Roll Former:

(1)  Feed guide device: machine feeding port with 1 set horizontal-stabilize roll and side guide device on both sides.

3. Roll forming system:

1)    Frame: The overall structure is welded by H steel.

2)    Standing house side panel:individual standing house,thickness: 40 mm. After finishing the surface is blackened; horizontal axis diameter φ58, key 12mm.

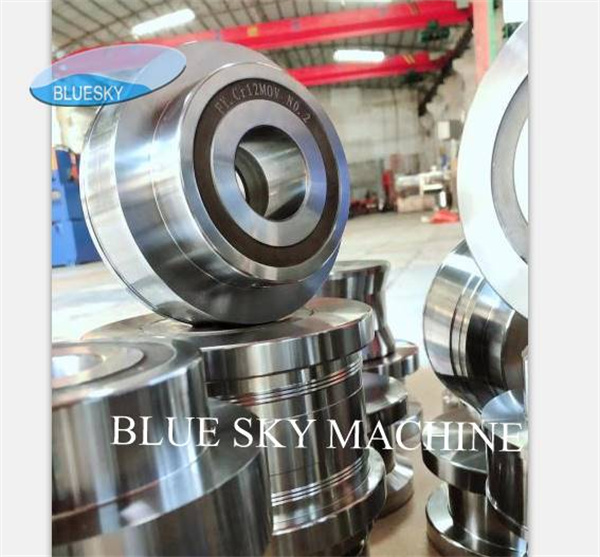

3)    Roll material: GCR15 die steel

4)    Straightness: Adopt single group wheel structure

6) Roller way qty.                : 18 NOS.

7) Forming machine form   : from left to right or as per buyer

8) Forming speed              : 0-15 m/min

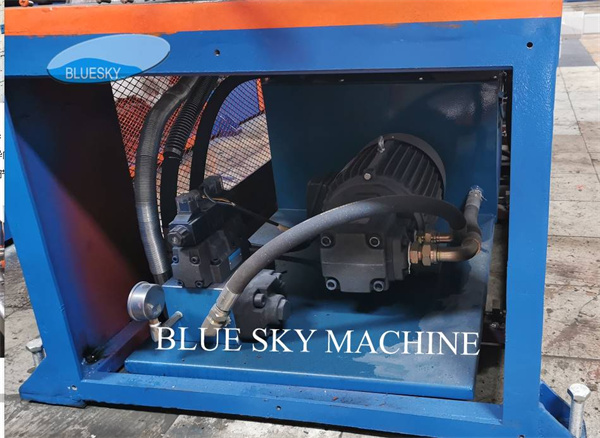

4.    Hydraulic cutting system:

(1)  With hydraulic as shearing power, hydraulic components from joint venture brand.

(2)  Shearing method: auto shearing as per set parameter on the touch screen, blade material Cr12mov, quenched, HRC60℃.

(3)  Machine transmission parts use Taiwan TBI precision linear guide way.

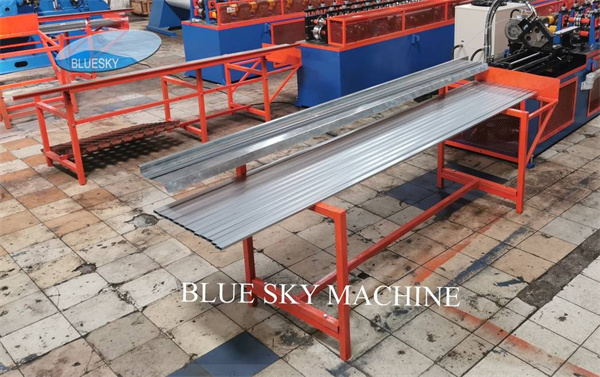

5.    Unloading table:

(1)  Material receiving roller size       : 3000mm

(2)  Structure                                     : Independent agency



VII. Working environment:

1.     Environment temperature: -10℃~+40℃.

2.     Relative air humidity: no more than 60% when +40℃, and no more than 95% when +25℃.

3.     There is no material may cause explosion, nor gas that may corrode metal or damage insulating layer, and no conductive dust.

4.     No rains or snows.

5.     Power supply: voltage 380V±10%, 3-phase, frequency between 49.5-50.5 HZ

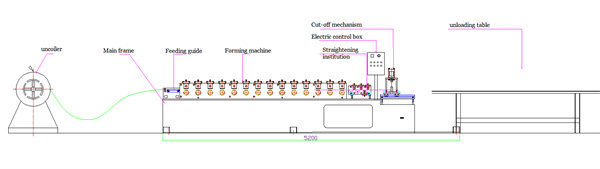

 VIII. Machine picture:

















Specification
Raw Material Type Galvanized Sheet
Thickness 0.8-1.2mm
Performance Speed Max. 15m/min
Uncoiler Type Hydraulic
Capacity 3 T
Main Machine Main Roller Station 18
Main Drive Hydraulic Motor or Servo Motor
Transmission Type Chain
Cutting Cutter Type Hydraulic
Cutter Material Cr12
